Canon Full Auto Combo OCT Retinal Camera Xephilio OCT-R1

A powerful Combination of a fully automated SD-OCT and unsurpassed HD resolution retinal imaging technology made by Canon.

Features

OCT Retinal Camera Xephilio OCT-R1 is a powerful combination of a fully automated SD-OCT and unsurpassed HD resolution retinal imaging technology made by Canon.

The comprehensive RX software is designed to automatically combine the information from both the OCT and the retinal camera for complete reporting and diagnostic support. Additionally, a large touchscreen makes the Xephilio OCT-R1 device easy to operate.

Compact Design

 Small Footprint

It can easily fit into any room, even in smaller spaces but can also be placed in a also can be placed in a corner or against a wall, allowing for optimal use of the available space

 Flexible Layout

The touchscreen can be positioned either parallel to the device or beside it, providing flexibility and convenience for the user.

Canon Full Auto Combo OCT Retinal Camera Xephilio OCT-R1 rotatable touchscreen
Canon Full Auto Combo OCT Retinal Camera Xephilio OCT-R1 rotatable touchscreen

Excellent Ergonomics

  • The forehead rest features a 5 degree tilt to make it more comfortable for the patient to maintain their forehead against the rest.
  • Reduce any discomfort and improve patient collaboration during the imaging process, resulting in a more efficient and successful OCT scan.
Canon Full Auto Combo OCT Retinal Camera Xephilio OCT-R1 ergonomic headrest design

Simplified Connectivity

The OCT-R1 offers a hassle-free connection experience with its USB-C cable. With just one cable, you can easily connect the OCT-R1 to your PC, simplifying both PC requirements and installation.

Canon Full Auto Combo OCT Retinal Camera Xephilio OCT-R1 simple connectivity with USB cable

OCT Retinal Camera Xephilio OCT-R1

One-Touch Operation

Simply tap on the screen and the OCT-R1 will complete the examination automatically

External Eye Auto Alignment and Tracking

By simply tapping on the pupil in the external eye image, the device will automatically adjust to the proper position, and any involuntary eye movements will be continuously compensated for.

Retinal Auto Tracking and Autofocus

The retinal auto tracking adjusts the OCT scanning position continuously to adjust for even minute eye movements. Focus is adjusted automatically for OCT and retinal camera as well

Sequential Auto

The OCT-R1 offers a fully automated examination protocol that can be initiated with just one touch. This advanced feature streamlines the imaging process and ensures accuracy and consistency in the imaging data obtained from both eyes

Canon Full Auto Combo OCT Retinal Camera Xephilio OCT-R1 Sequential Auto

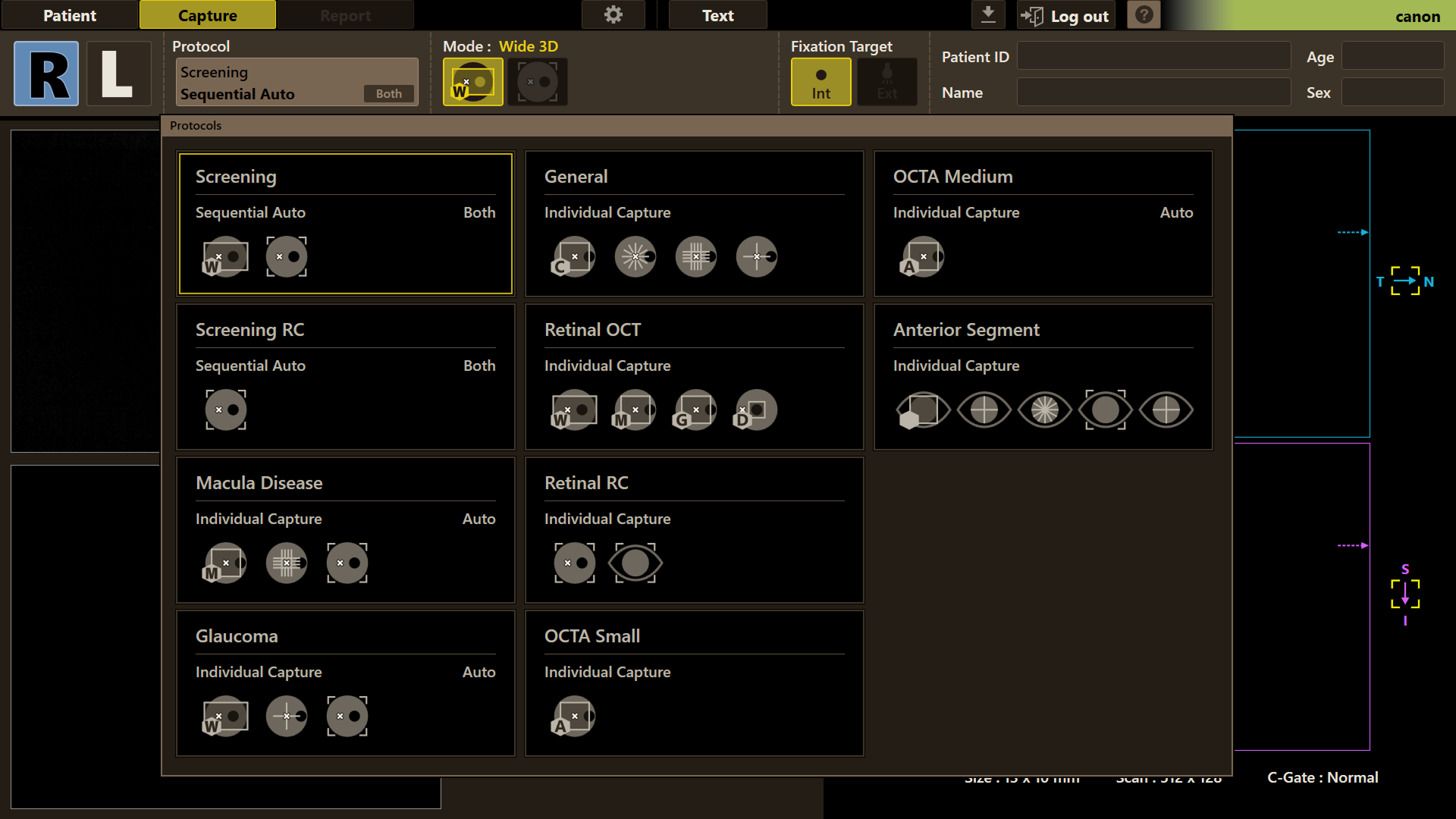

 Fully Automated Sequential Examination Protocol

The sequence of the examination protocol can be created to your requirements. It can consist of up to 4 OCT examinations + 1 retinal image or 5 OCT examinations for both eyes

 Smart Auto Scanning

During the sequential auto sequence, the status of the capturing clearly shows how far each step of the examination has progressed.

Canon Full Auto Combo OCT Retinal Camera Xephilio OCT-R1 auto capture

OCT Retinal Camera Xephilio OCT-R1

Audio Guidance

  • The OCT-R1 offers audio guidance to help guide the patient through the entire OCT examination process, starting from the initial alignment until the OCT scan is captured.
  • The device supports multiple languages, allowing for easy communication and usability with patients from different linguistic backgrounds.
Canon Full Auto Combo OCT Retinal Camera Xephilio OCT-R1 audio guidance

 Reviewing Results

  • The results of the sequential examination are visualized in a comprehensive overview.
  • With the retry function scans that have too low image quality can be re-taken very easily
Canon Full Auto Combo OCT Retinal Camera Xephilio OCT-R1 results viewing

Auto Image Quality Alert Function

  • Notifies the OCT examiner when a captured image has insufficient image quality.
  • The OCT-R1 minimizes the risk of incorrect diagnoses due to poor image quality and provides a helpful tool for busy clinicians

OCT Measurements

Simply tap on the screen and the OCT-R1 will complete the examination automatically

Canon Full Auto Combo OCT Retinal Camera Xephilio OCT-R1 OCT picture

Fast and Consistent Exams

  • The Xephilio OCT-R1 is a highly customizable device that offers programmable exam presets, allowing operators to combine multiple scan modes into a single exam.
  • This unique feature is designed to reduce patient journey and improve clinic workflow.
Canon Full Auto Combo OCT Retinal Camera Xephilio OCT-R1 OCT exam modes

Averaging Scans

  • The Xephilio OCT-R1 includes an averaging function that allows for the combination of up to 50 multiple scans to eliminate any optical noise.
  • By averaging these scans, the OCT-R1 is able to produce a highly detailed and clear image.
Canon Full Auto Combo OCT Retinal Camera Xephilio OCT-R1 averaging scans

Scans with Wide Field-of-View

The Xephilio OCT-R1 is capable of making very wide scans :

  • Max 14.7 mm × 13.4 mm in very high resolution of 1536 a-scans wide
Canon Full Auto Combo OCT Retinal Camera Xephilio OCT-R1 wide field-of-view OCT image

OCT Angiography (optional)

  • A non-invasive technology that allows clinicians to visualize the microvasculature of the retina in extraordinary detail. OCT-R1 detects the movement of red blood cells in the retinal vasculature, making it possible to identify even the tiniest vessels with incredible precision.
  • Canon OCT Angio provides results within only few seconds and does not require an injection with fluorescein or dilation of the pupil.
Canon Full Auto Combo OCT Retinal Camera Xephilio OCT-R1 OCT Angiography

OCT Angiography with Angio Expert

  • Angio Expert is Canon’s Xephilio OCT Angiography software that can be used with the OCT-R1. It utilizes sophisticated algorithms to extract motion information from the tomograms obtained by the OCT-R1. It enables the visualization of even the smallest blood vessels in both 2D and 3D formats.
  • The software allows for scans of various sizes, ranging from 232 x 232 to 464 x 464 (A-Scan x B-Scan). The scan area can also be quite wide, ranging from 3 x 3 up to 13.4 x 13.4 mm, providing a large OCTA scan area for comprehensive analysis.
Canon Full Auto Combo OCT Retinal Camera Xephilio OCT-R1 OCT Angiography with Angio Expert

 Intelligent Denoise

AI technology Intelligence Denoise offers a new quality of OCTA images. Utilizing a single OCT-A acquisition, Canon AI technology revolutionizes OCTA images by reducing image noise, enhancing details, and improving visibility within seconds, providing a new level of OCT-A quality.

Canon Full Auto Combo OCT Retinal Camera Xephilio OCT-R1 OCT image before Intelligent Denoise

Without ID

Canon Full Auto Combo OCT Retinal Camera Xephilio OCT-R1 OCT image after Intelligent Denoise

With ID

Panoramic Imaging

Mosaic software creates wide OCT-A images by combining 4 or 5 OCT-A scans, helpful to visualize retinal pathologies in the far periphery.

Canon Full Auto Combo OCT Retinal Camera Xephilio OCT-R1 Panoramic imaging

Retinal Camera Function

32.5 MP Purpose-built digital EOS camera

  •  EOS Retina digital camera is integrated with a DIGIC image processor that uses dedicated algorithms to provide optimal image parameters for retinal imaging. The EOS Retina delivers the best possible retinal image with accurate representation of true colors
  • Canon EOS Retina advanced technology being integrated into the latest Xephilio OCT-R1 to improve eye care diagnostic capabilities and patient outcomes

Full Auto

With the Full Automatic eye exam technology, all it takes is a simple tap on the external eye image to automatically find and maintain the correct center position

Auto Focus

OCT-R1 next-generation focusing technology allows for fast and accurate focus, even on eyes with small pupils allowing precise eye examinations.

Photometric Auto Exposure

Canon’s unique method of photometric auto exposure ensures optimal intensity of the observation light and flash. It adjusts in real time, depending on the reflected light from the retina. This guarantees correct exposure, independent of ethnicity or pupil size.

Canon Opacity Suppression

  • The original brightness and color of the retina will be restored. Canon Opacity Suppression is designed to reduce the effect ocular opacity for a clearer view of the blood vessels.
  • This results in more accurate diagnoses as obscure structures become more recognizable for diagnostic purposes
Canon Full Auto Combo OCT Retinal Camera Xephilio OCT-R1 opacity suppression

High definition image quality

See more than ever before with the Canon EOS 32.5 MP Digital camera and very latest high quality optics

Extensive Photography Modes

To cover your various imaging requirements

Canon Full Auto Combo OCT Retinal Camera Xephilio OCT-R1 Extensive Photography Modes

45 degrees images

The imaging standard for retinal screening (67.5 degrees when using center of eye as reference). Additionally a X 2 magnification (30 degrees) is available.

Canon Full Auto Combo OCT Retinal Camera Xephilio OCT-R1 45 degrees images

Digital Red Free and Cobalt imaging

  • The images will be automatically generated from the raw color image data.
  • Canon’s proprietary image processing provides an image quality fully comparable with optical filters.
45 degrees images

               Digital Red Free                    Cobalt imaging

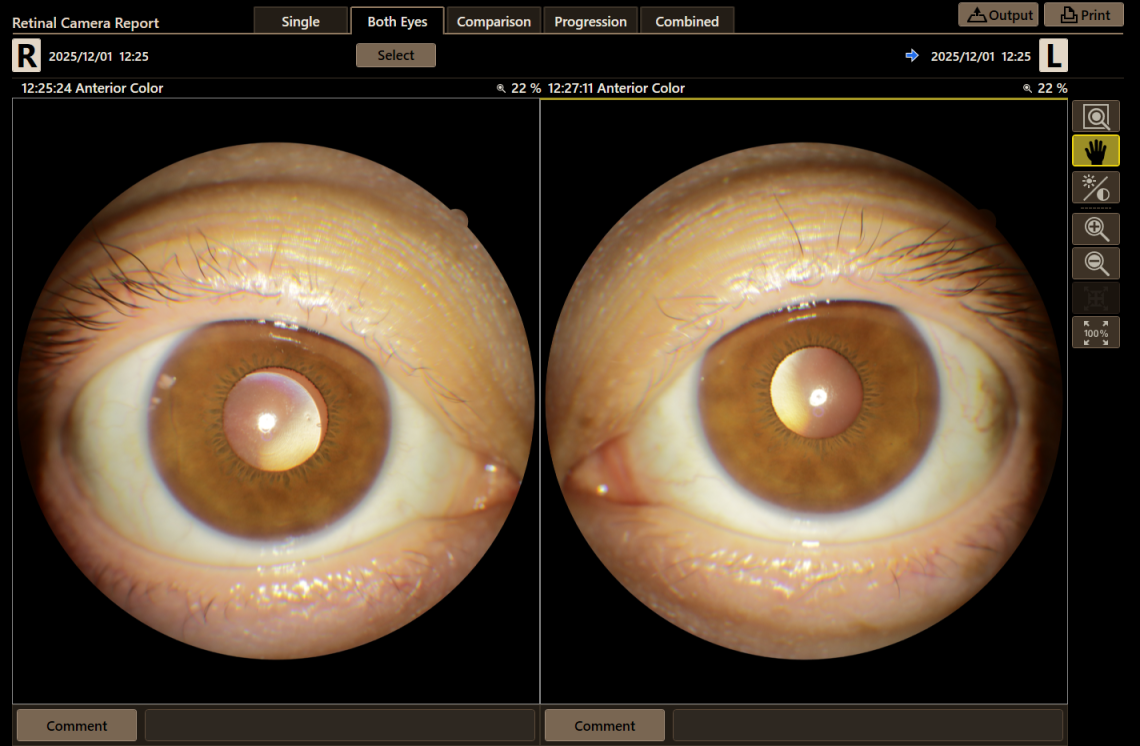

Anterior Photography

Quick and easy anterior segment photography to document the cornea, pupil, eyelid and sclera.

Canon Full Auto Combo OCT Retinal Camera Xephilio OCT-R1 Anterior Photography

Wide Field Imaging

Combine up to 20 images into a wide field mosaic image covering an area of up to 100 degrees. The operator is assisted by automatic fixation light guidance.

Canon Opacity Suppression

Retinal Expert software

The Graphic User Interface (GUI) of Canon’s Retinal Expert software is designed to be intuitive and user-friendly. It is optimized for touch screen operation, with generously dimensioned and clear icons that make navigation effortless

Extensive Glaucoma Examinations

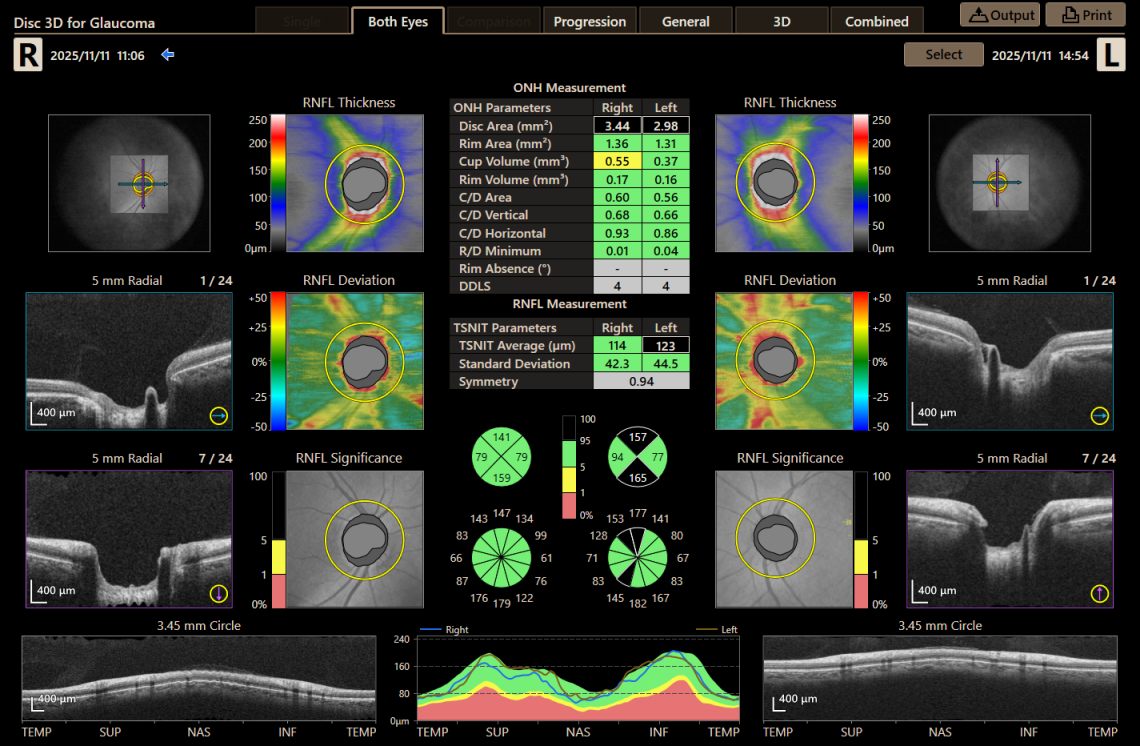

Disc 3D

Xephilio OCT-R1 allows a comprehensive analysis of all optic disc parameters, including comparisons with an extensive normative database

Canon Full Auto Combo OCT Retinal Camera Xephilio OCT-R1 Disc 3D

Macula 3D for glaucoma

Early detection is the key to slowing the progression of glaucoma. Xephilio OCT-R1 supports NFL + GCL + IPL and GCL + IPL measurements with a wide set of graphical representations for complete analysis.

Canon Full Auto Combo OCT Retinal Camera Xephilio OCT-R1 Macula 3D for glaucoma

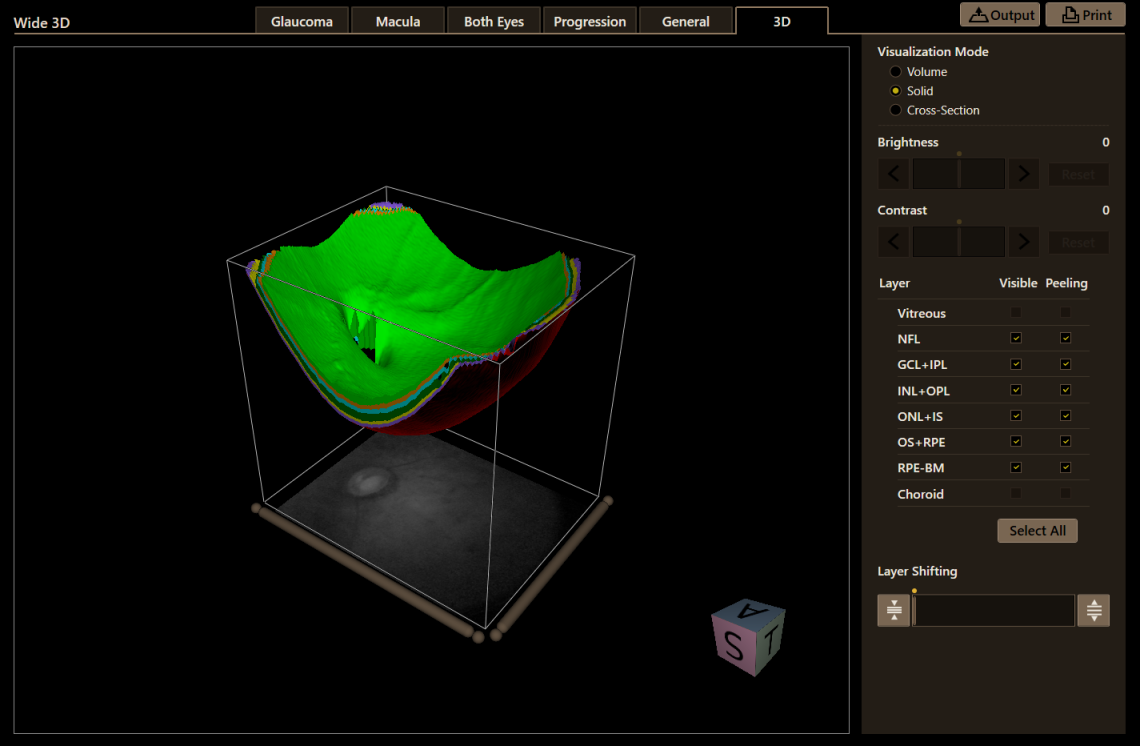

Wide 3D scan mode

This time saving Wide 3D scan mode (13×10 mm) combines 2 scans: Glaucoma scan, combining the Macula 3D for glaucoma and Disc 3D scans in 1 single acquisition

Canon Full Auto Combo OCT Retinal Camera Xephilio OCT-R1 Wide 3D scan mode

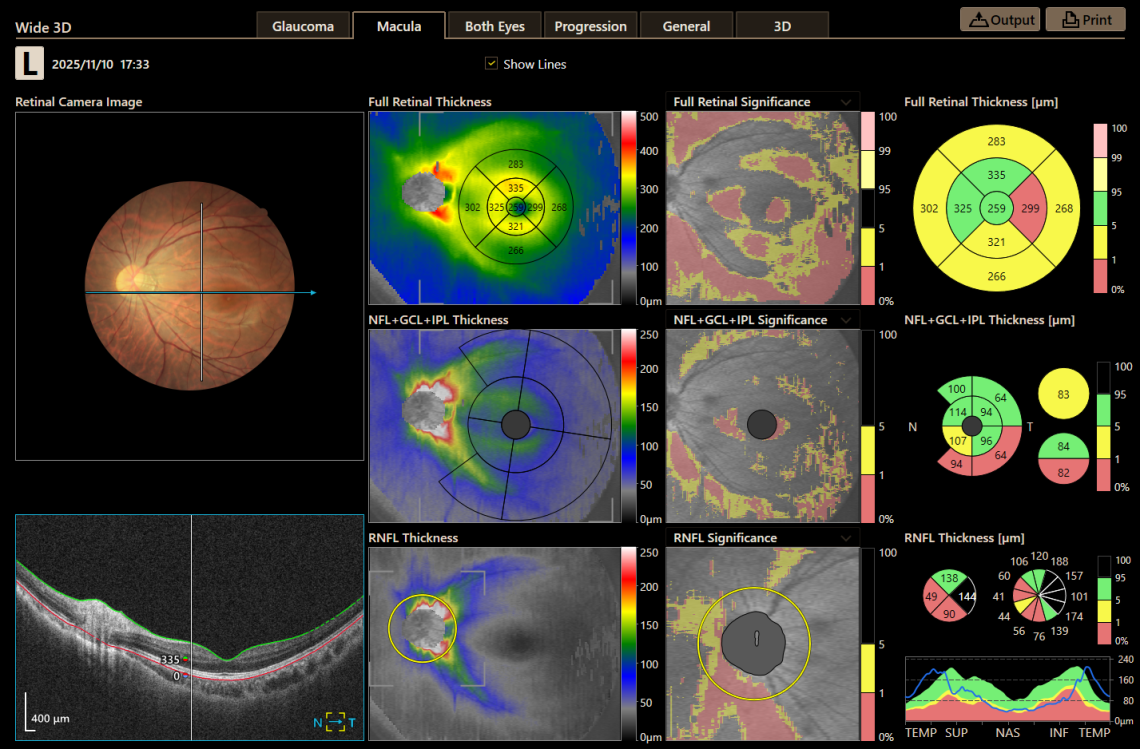

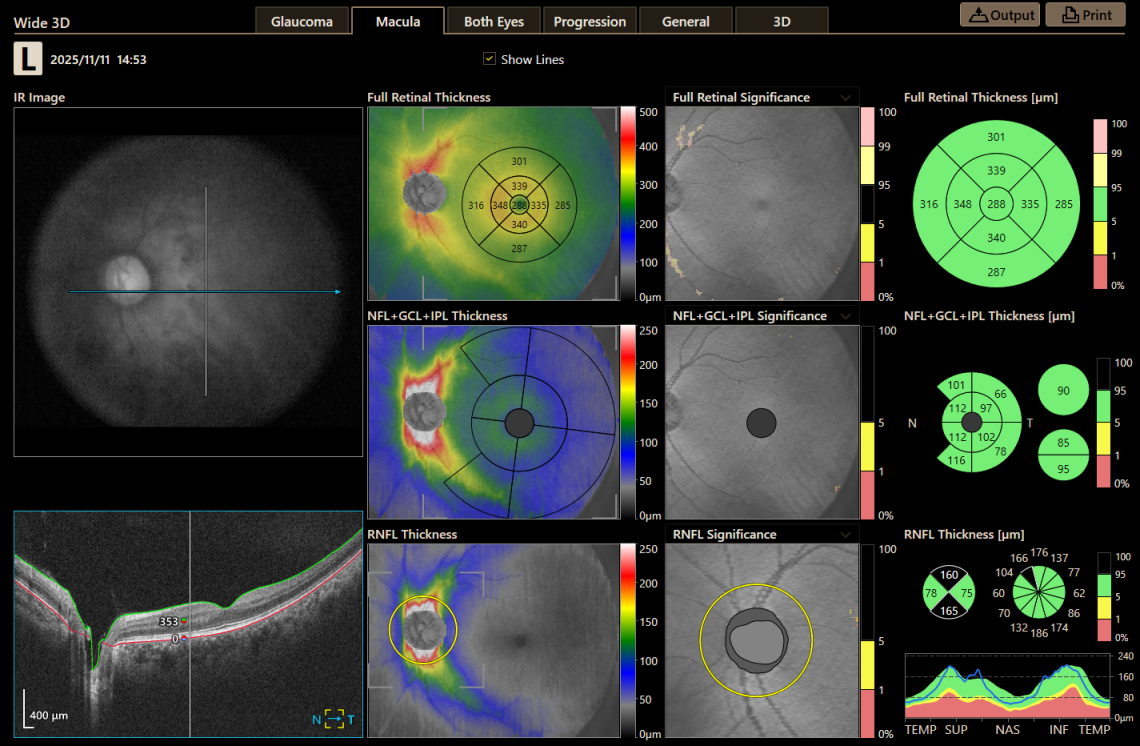

Macula Examination

The system provides a detailed analysis of retinal thickness using comparisons with a normative database, ETDRS grids, various tables and 3D visualizations

Canon Full Auto Combo OCT Retinal Camera Xephilio OCT-R1 Macula Examination

Progression

Select up to five previous studies to observe progression.

Canon Full Auto Combo OCT Retinal Camera Xephilio OCT-R1 Progression

Comparison

Compare two examinations of the same eye, in same scan mode, same size of scanning area, from different dates.

Canon Full Auto Combo OCT Retinal Camera Xephilio OCT-R1 Comparison

OCTA: Projection artifact Removal

  • Canon’s Angio Expert utilizing a specialized algorithm that relies on full 3D signal data for a natural removal of projection artifacts.
  • Ensures that the clinical information is preserved while still enhancing the accuracy of the diagnosis.
Canon Full Auto Combo OCT Retinal Camera Xephilio OCT-R1 OCTA: Projection artifact Removal

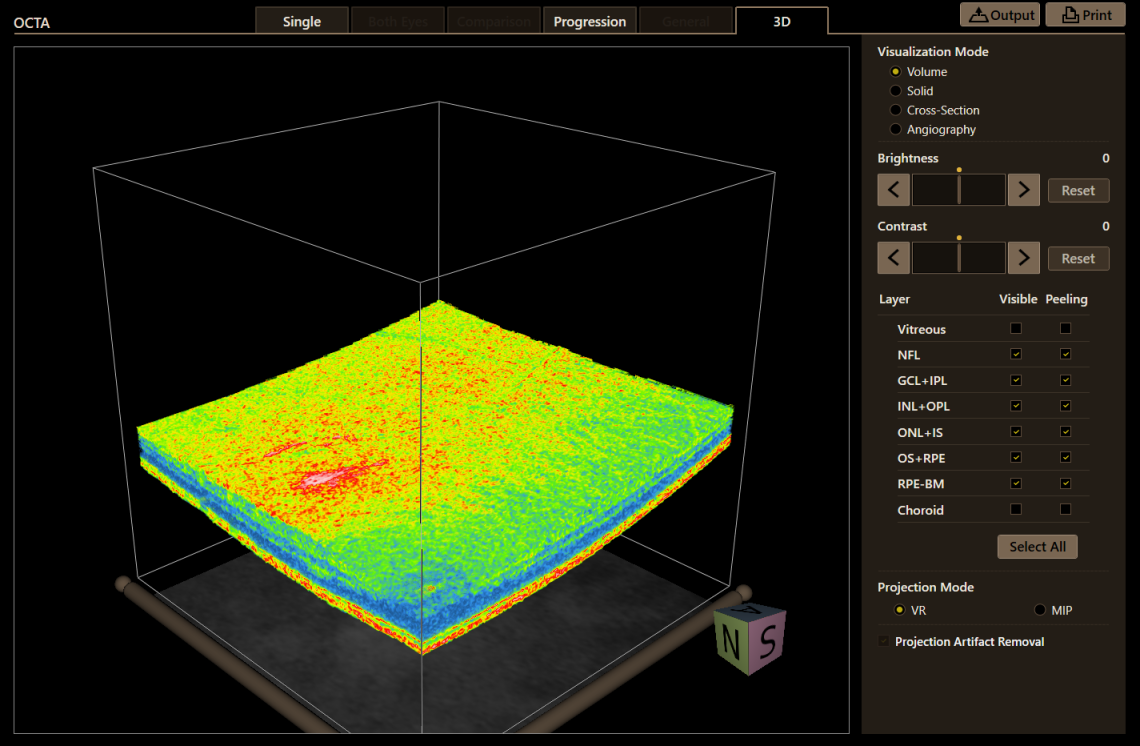

OCTA: Customizable Slabs for Precise Viewing

  • The Retinal Expert software provides 4 separate windows to display the Superficial Capillary, Deep Capillary, CNV (Choroidal Neovascularization), and Choriocapillaris.
  • The slabs in each window are completely adjustable, offering flexibility to suit your specific OCT imaging requirements.
Canon Full Auto Combo OCT Retinal Camera Xephilio OCT-R1 Customizable Slabs for Precise Viewing

Live Viewing and Control for Retinal Photography

  • The RX software offers a capture screen for retinal photography that provides live viewing of both the anterior eye and the posterior retina simultaneously.
  • Allows clinicians to precisely position the camera and ensure proper alignment for capturing high-quality retinal images.
Canon Full Auto Combo OCT Retinal Camera Xephilio OCT-R1 Live Viewing and Control for Retinal Photography

Extensive software tools

  • RX Software offers an impressive arsenal of tools to assist your diagnosis and to create a clear and complete report.
  • Use the emboss function on a retinal image, change its gamma value, adjust its brightness and contrast, change its color balance, add annotations to it, and analyze its C/D ratio. Images can also be rotated, flipped and mirrored.
Canon Full Auto Combo OCT Retinal Camera Xephilio OCT-R1 Extensive software tools
Canon Full Auto Combo OCT Retinal Camera Xephilio OCT-R1 Extensive software tools

OCT Retinal Camera Xephilio OCT-R1

Automatic Overlay Function

  • Searches for the most suitable available retinal image for comparison.
  • Eliminates the need for clinicians to manually search for similar retinal images, streamlining the diagnostic process and saving valuable time
Canon Full Auto Combo OCT Retinal Camera Xephilio OCT-R1 automatic overlay function

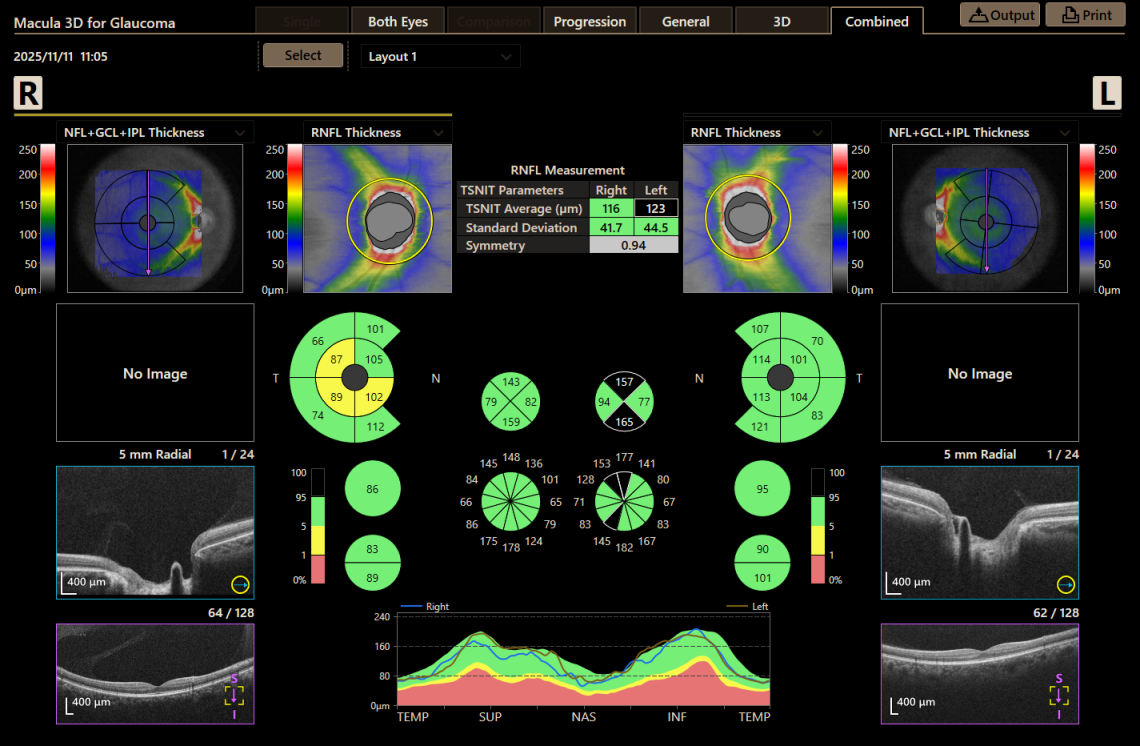

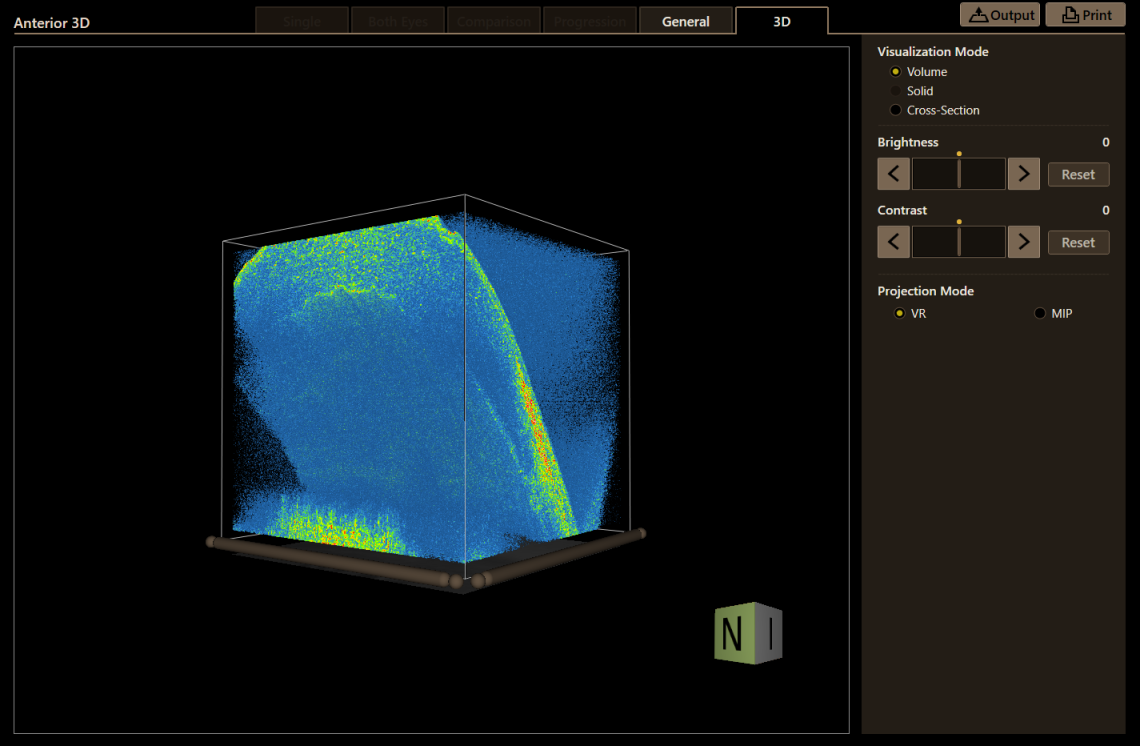

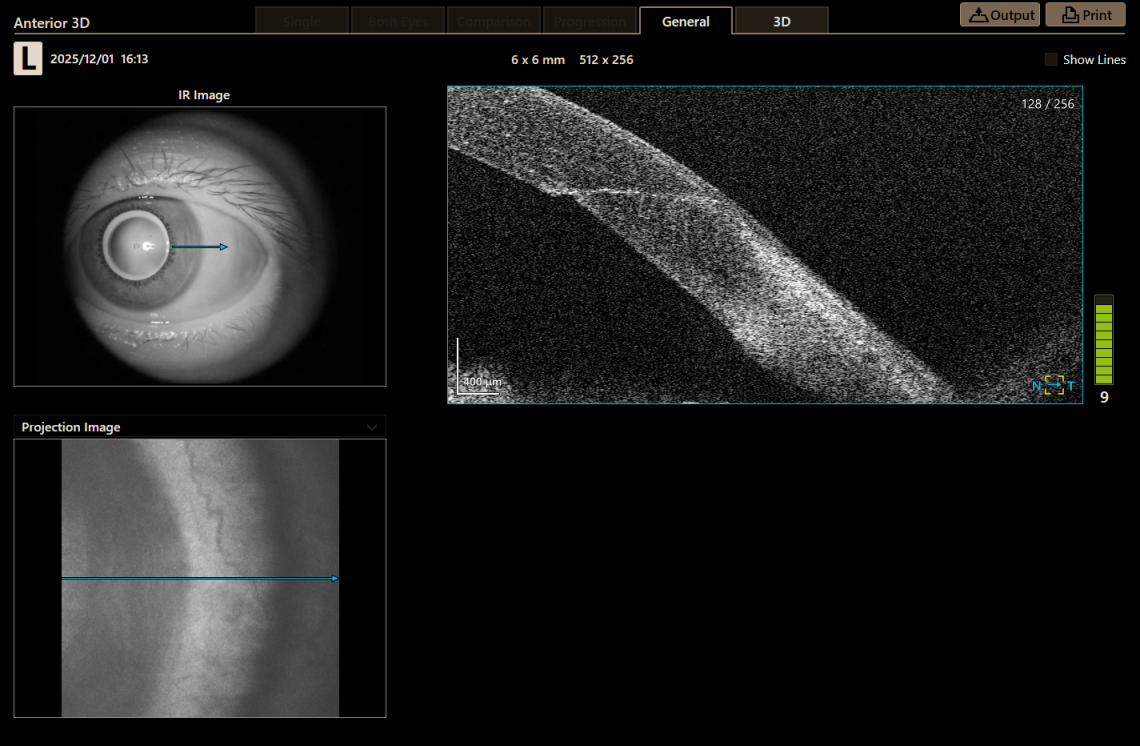

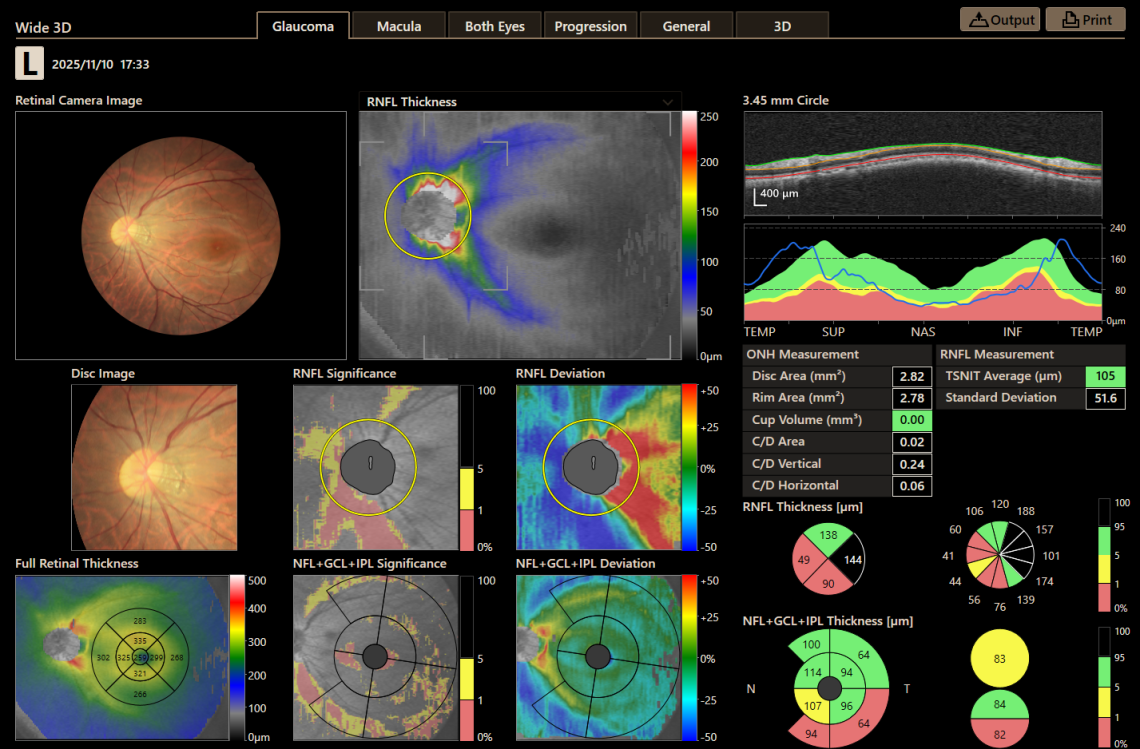

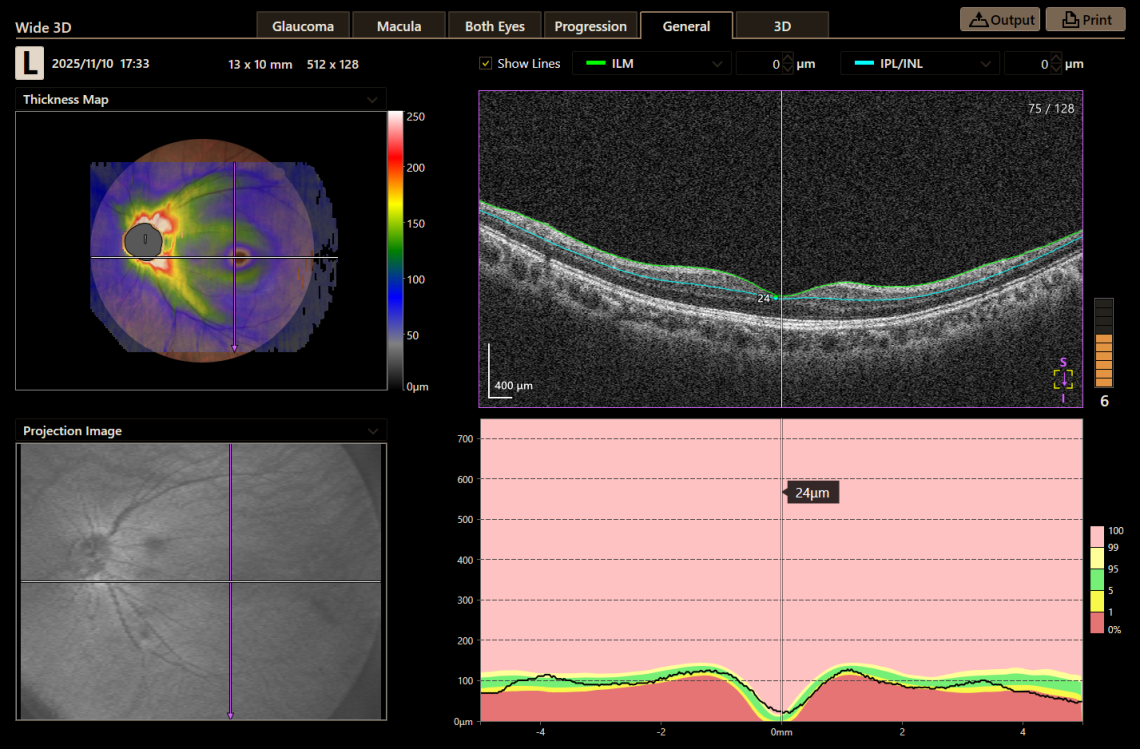

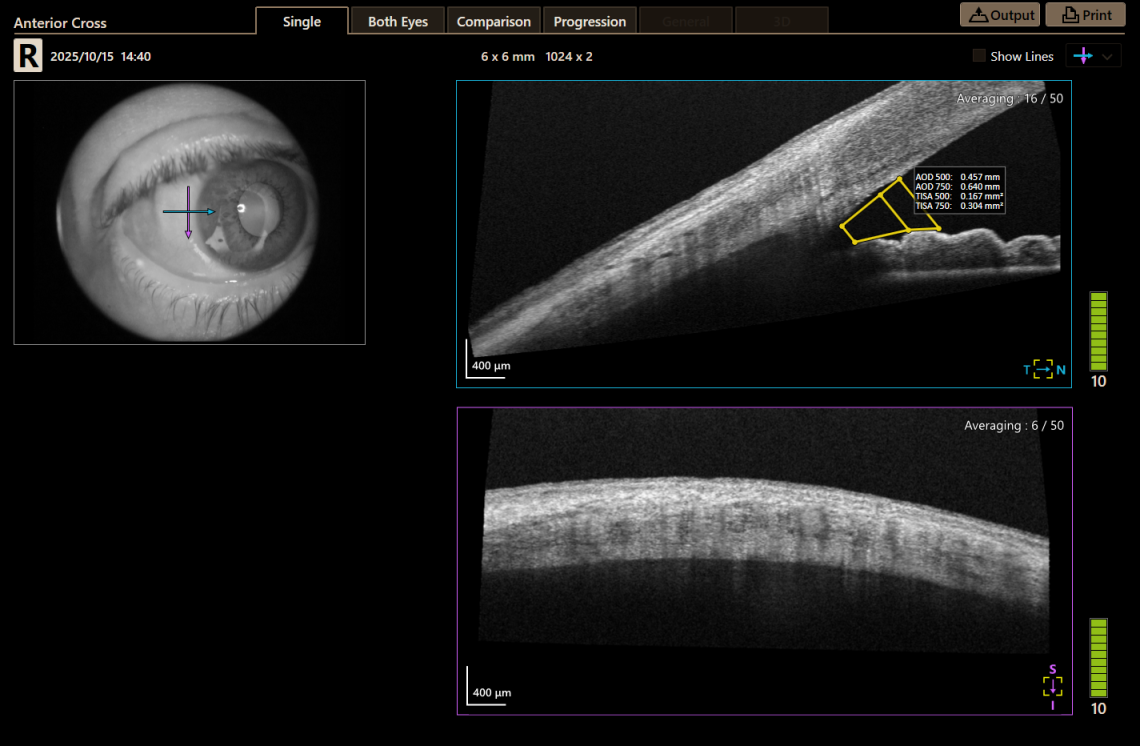

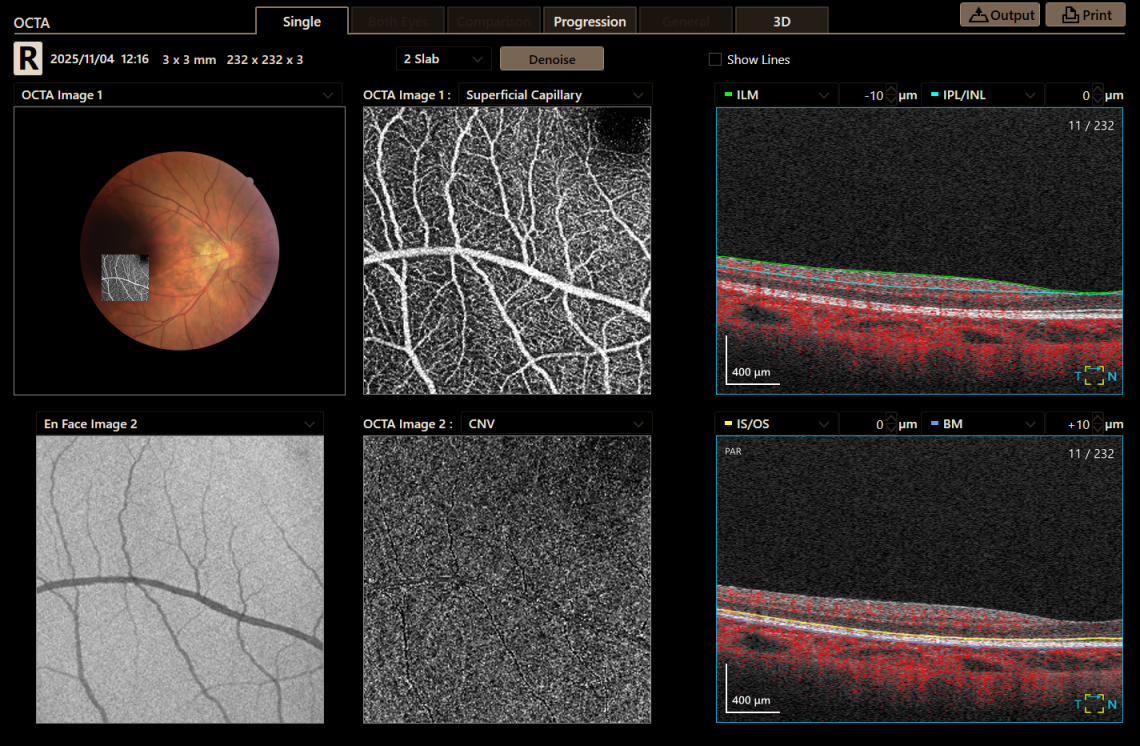

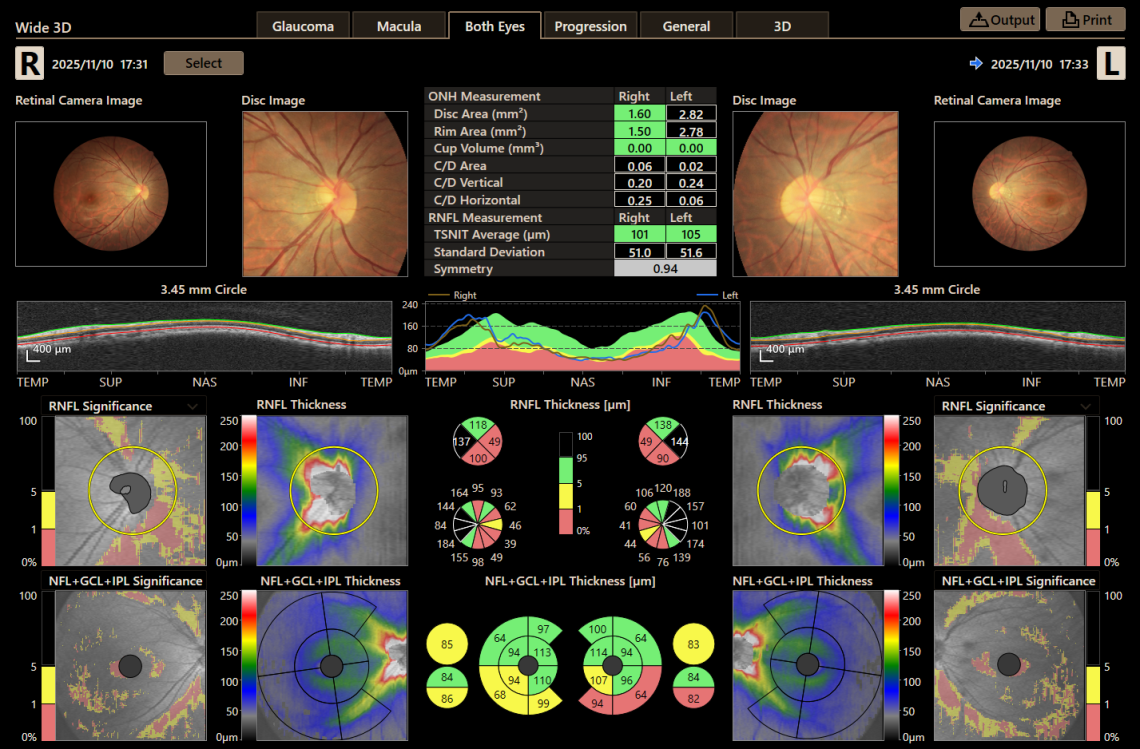

Comprehensive Overview Report with Combined OCT and Retinal Images

  • The RX software generates an extensive overview report that combines OCT scans with retinal images.
  • Provides clinicians with comprehensive diagnostic information, facilitating a well-informed patient diagnosis

OCT Retinal Camera Xephilio OCT-R1

Canon Full Auto Combo OCT Retinal Camera Xephilio OCT-R1 Comprehensive Overview Report with combined OCT and Retinal Images

Data Management

Efficient Patient Data Management with Retinal Expert Software

  • The Retinal Expert software eliminates the need for time-consuming manual input of patient data.
  • Offers the convenience of importing patient lists directly from the practice management system or through a modality worklist in a DICOM environment.
  • Streamlines the workflow and reduces the chance of errors in data entry

Network Connectivity

  • Canon Medical’s Retinal Expert (RX) Ophthalmic Software Platform is designed for seamless integration into your existing EMR system or practice management software and also offers cloud based storage solutions.
  • RX Software is fully DICOM compliant – included as standard.

Stand alone

The RX Capture software is fully integrated with Canon retinal cameras and enables
capturing, reviewing and reporting in stand-alone mode. It also serves as a database including archiving

Viewing station

RX Viewer software allows you to access all patient data for reviewing and reporting from remote locations while the database remains on the RX server

Server solution

With the RX server software you can connect multiple modalities and viewers while storing all images and patient data on a centralized server.

OCT Retinal Camera Xephilio OCT-R1

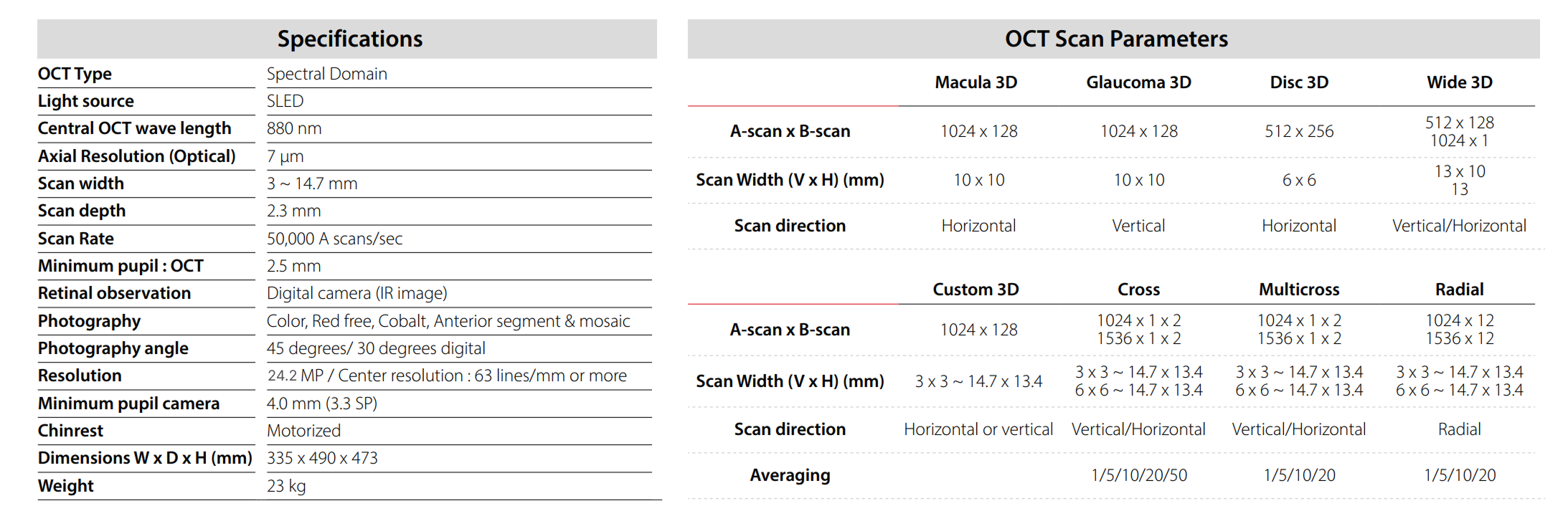

Technical Parameters

Canon Full Auto Combo OCT Retinal Camera Xephilio OCT-R1 technical parameters
