Auto Lensometer LM-800

Auto lensometer LM-800 with LCD touching screen. Follows Hartmann Principle for more accurate measurement. Simple user interface and easy to operate.



Features

Auto lensometer LM-800 comes with the LCD touching screen, providing simple and smooth operation experience. Hartmann Principle provides more accurate measurement result.

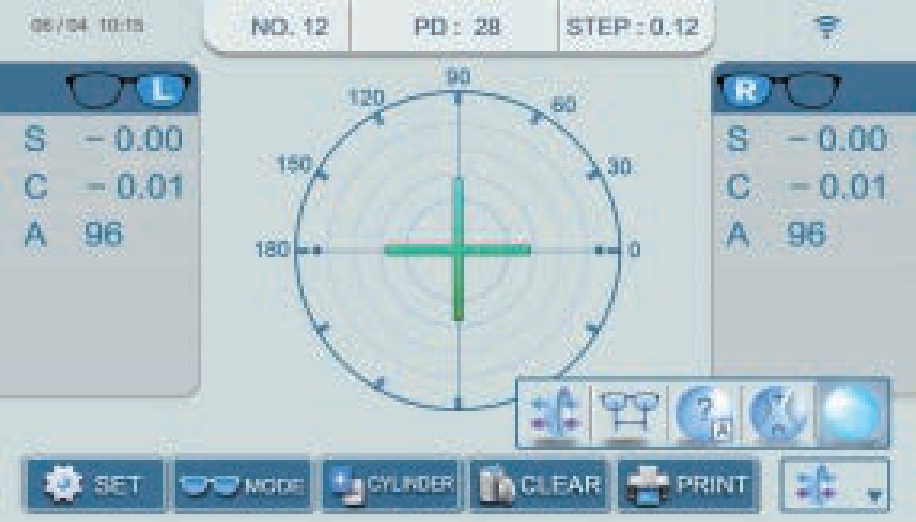

LCD Touch Screen

Provides HD liquid crystal display

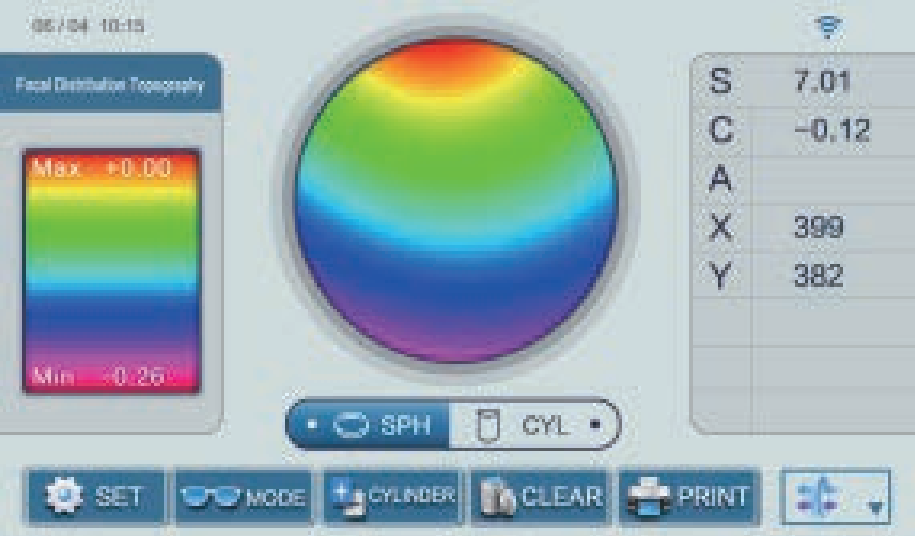

Built-in Focus Distribution Terrain Function

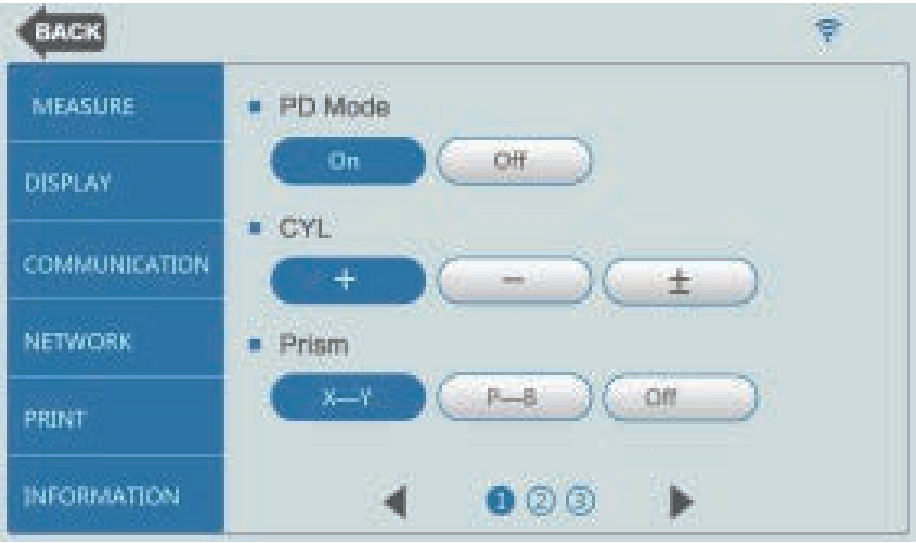

Simple User Interface

Easier to learn the operation

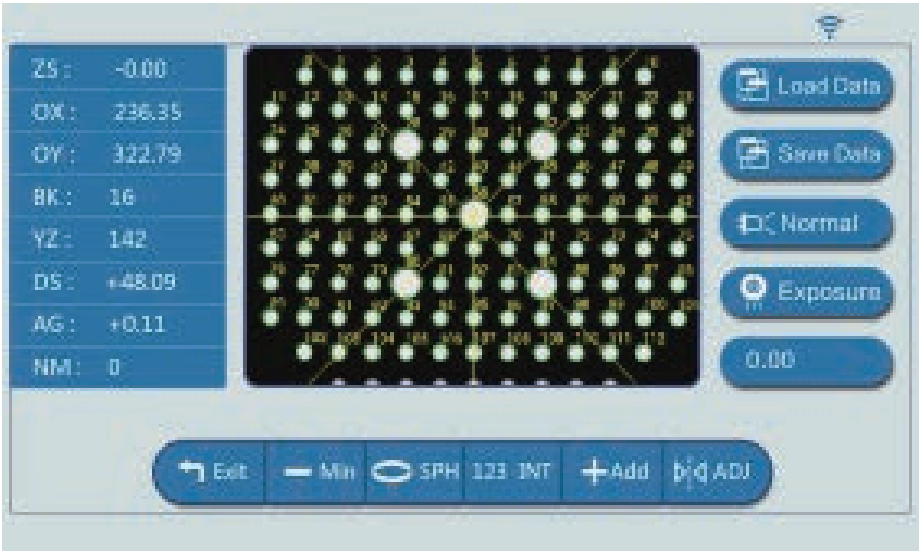

Hartmann Principle

More accurate measurement

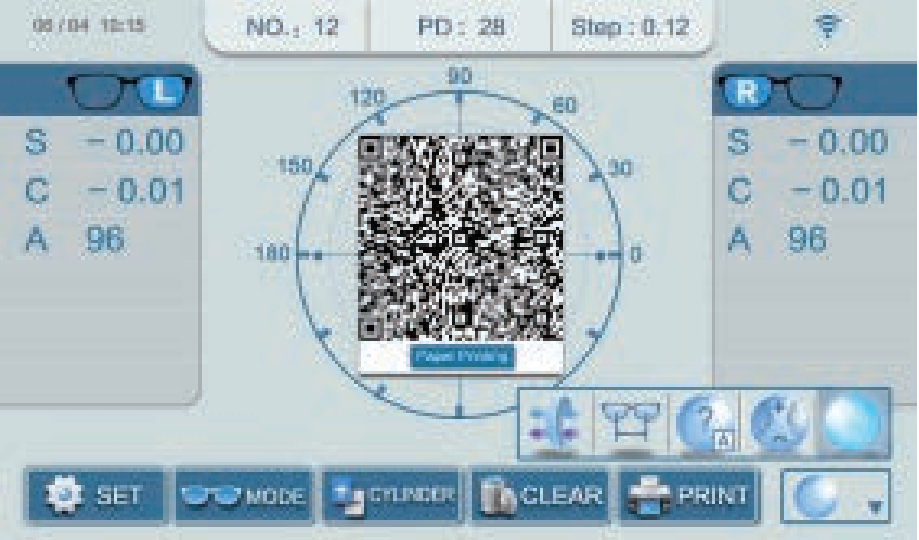

QR Code Printing

Paperless measurement

All-in-One Printer

Easier printing paper replacement

Technical Parameters

auto lensometer

The Range of Measurement

Sphere

0m-1 ~ ±25m-1

Cylinder

0m-1 ~ ±10m-1

Add

0m-1 ~ ±10m-1

Astigmatism

0° ~ 180°

Prism Basal Angle

0° ~ 360°

Measurement Range

0° ~ 360°

Prism

Horizontal 10cm/m

Vertical 15cm/m

The Accuracy of Measurement

Dioptric

(0.01/0.12/0.25) m-1

Prism

(0.01/0.12/0.25) cm/m

The Modes of Measurement

auto lensometer

Cylinder

+, ±, –

Prism

X-Y, P-B

Speed of Measurement

0.2 second

Diameter OD Measurable Lens

18 ~ 110mm
